gleichschenklig » EN AW 6060 T66 (AlMgSi0,5) EN 573-3/755-2/755-1/755-9
« Zurück zur Produktübersicht
« Zurück zur Produktübersicht
Aluminium-WinkelprofileEN AW 6060 T66 (AlMgSi0,5) |  |
alu_winkelprofile_58_neu.csv
| a x a x s in mm | kg/mtr. |
|---|---|
| 10 x 10 x 2,0 | 0,097 |
| 15 x 15 x 2,0 | 0,151 |
| 15 x 15 x 3,0 | 0,219 |
| 20 x 20 x 2,0 | 0,205 |
| 20 x 20 x 3,0 | 0,300 |
| 25 x 25 x 2,0 | 0,259 |
| 25 x 25 x 3,0 | 0,381 |
| 25 x 25 x 4,0 | 0,497 |
| 30 x 30 x 2,0 | 0,313 |
| 30 x 30 x 3,0 | 0,462 |
| 30 x 30 x 4,0 | 0,605 |
| 30 x 30 x 5,0 | 0,743 |
| 35 x 35 x 3,0 | 0,543 |
| 35 x 35 x 4,0 | 0,713 |
| 40 x 40 x 2,0 | 0,421 |
| 40 x 40 x 3,0 | 0,624 |
| 40 x 40 x 4,0 | 0,821 |
| 40 x 40 x 5,0 | 1,013 |
| 50 x 50 x 2,0 | 0,571 |
| 50 x 50 x 3,0 | 0,785 |
| 50 x 50 x 4,0 | 1,037 |
| 50 x 50 x 5,0 | 1,283 |
| 50 x 50 x 6,0 | 1,523 |
| 50 x 50 x 8,0 | 1,987 |
| 60 x 60 x 2,0 | 0,630 |
| 60 x 60 x 2,5 | 0,793 |
| 60 x 60 x 4,0 | 1,253 |
| 60 x 60 x 5,0 | 1,599 |
| 60 x 60 x 6,0 | 1,847 |
| 60 x 60 x 8,0 | 2,419 |
| 60 x 60 x 10,0 | 2,970 |
| 70 x 70 x 6,0 | 2,171 |
| 80 x 80 x 3,0 | 1,271 |
| 80 x 80 x 4,0 | 1,685 |
| 80 x 80 x 6,0 | 2,295 |
| 80 x 80 x 8,0 | 3,283 |
| 100 x 100 x 4,0 | 2,117 |
| 100 x 100 x 6,0 | 3,143 |
| 100 x 100 x 8,0 | 4,380 |
| 100 x 100 x 10,0 | 5,130 |

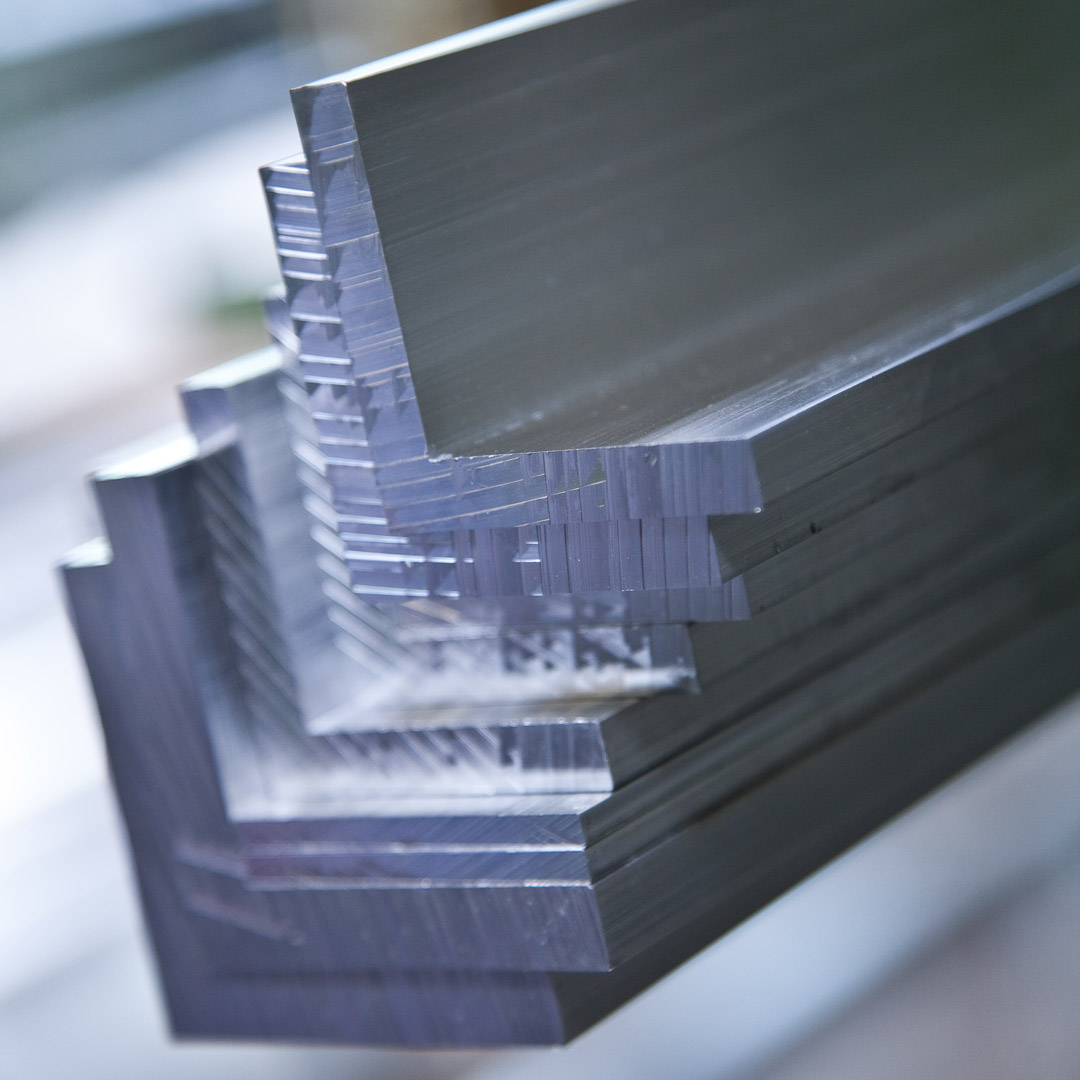

Aluminium-Winkel
Aluminium-Winkel
